Fujian Feiyasi Kitchen Technology Co., Ltd. is one of the leading manufacturers and suppliers of single-end mixed thread steel wire hose in China. If you're going to wholesale durable single-end mixed thread steel wire hose made in China, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Details

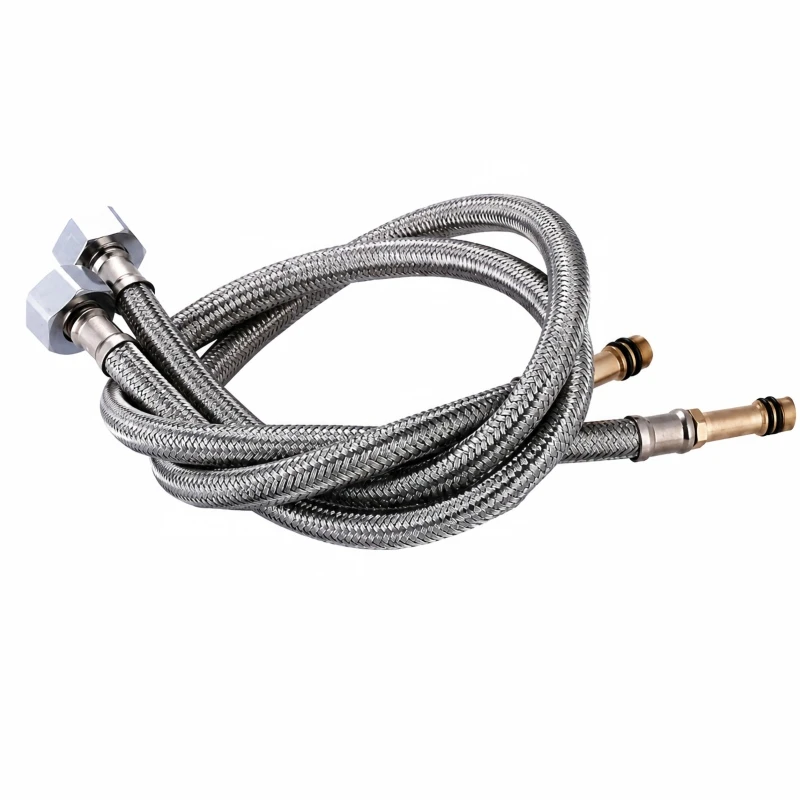

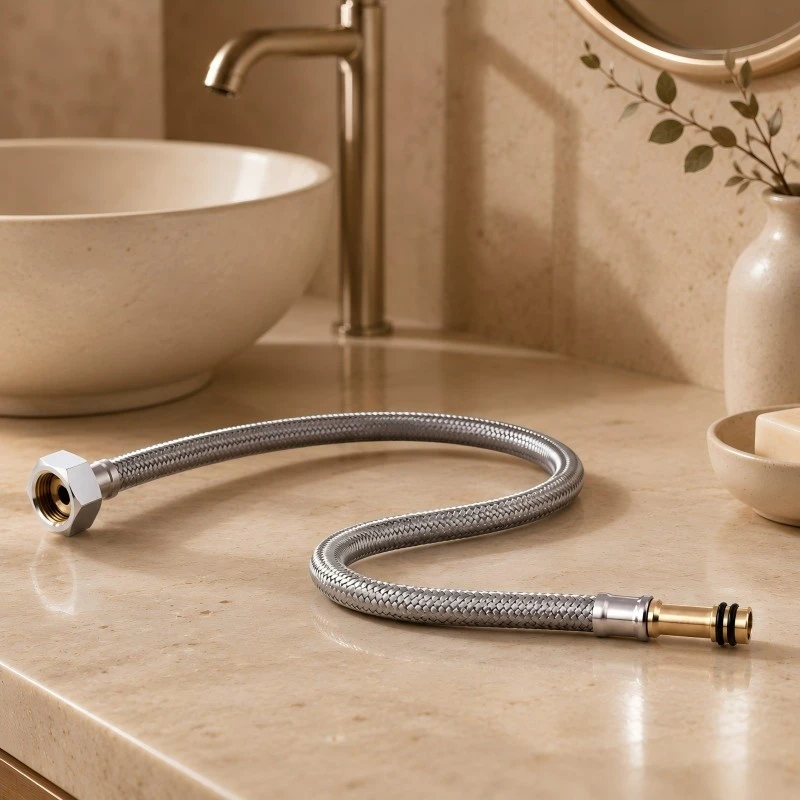

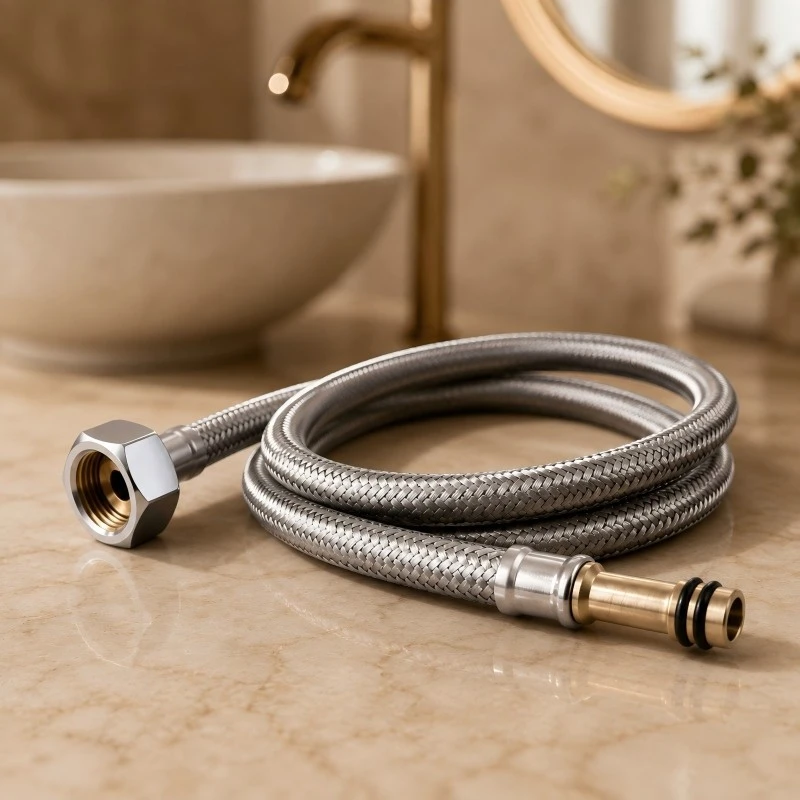

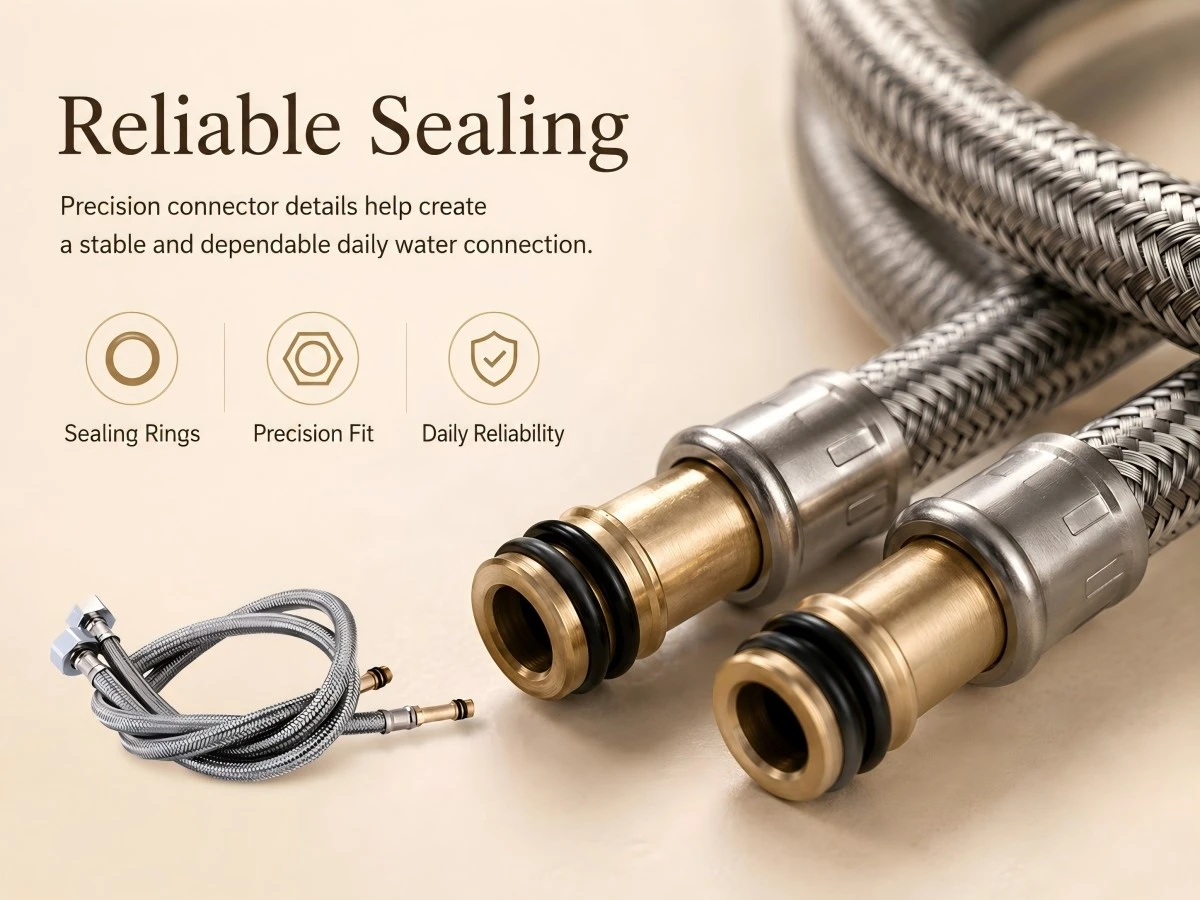

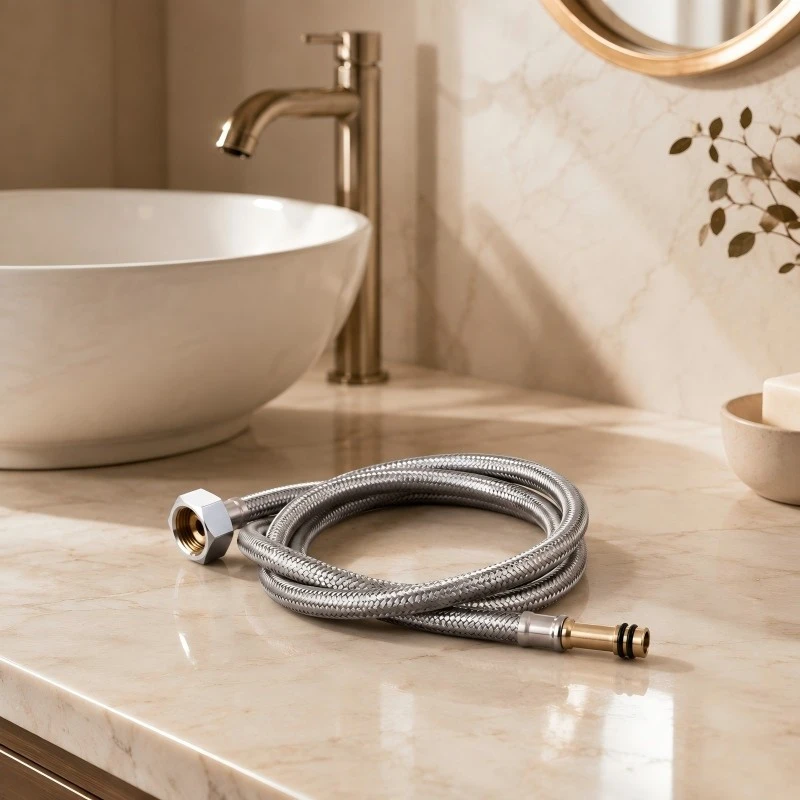

One end uses an M10 brass male rod with an O-ring, and the other end uses a G1/2 female hex nut. This unequal-end layout is intended for faucet connections rather than two identical wall fittings. Copper or steel caps are combined with a brass core and tip at the connector area.
The mixed silver-and-black braid gives the hose a clearly visible woven surface. Stainless steel wire supports the outside while black nylon is interlaced through the pattern. The internal EPDM tube is heat resistant and serves as the water-carrying layer for hot and cold faucet lines.
Working pressure is 1.0-1.2 MPa, burst pressure is at least 3.0 MPa, and the applicable temperature is 0-80 °C. Standard lengths run from 40 cm to 200 cm. Choose the final size after measuring the route between the faucet and supply point.
Product Specifications
|
Product Type: |
Faucet Supply Hose |
|
Outer Braid: |
Stainless Steel and Black Nylon |
|
Inner Tube: |
EPDM |
|
Faucet End: |
M10 Brass Male with O-Ring |
|
Supply End: |
G1/2 Female Hex Nut |
|
Working Pressure: |
1.0-1.2 MPa |
|
Burst Pressure: |
>=3.0 MPa |
|
Applicable Temperature: |
0-80 °C |
|
Length Options: |
40-200 cm |
|
Application: |

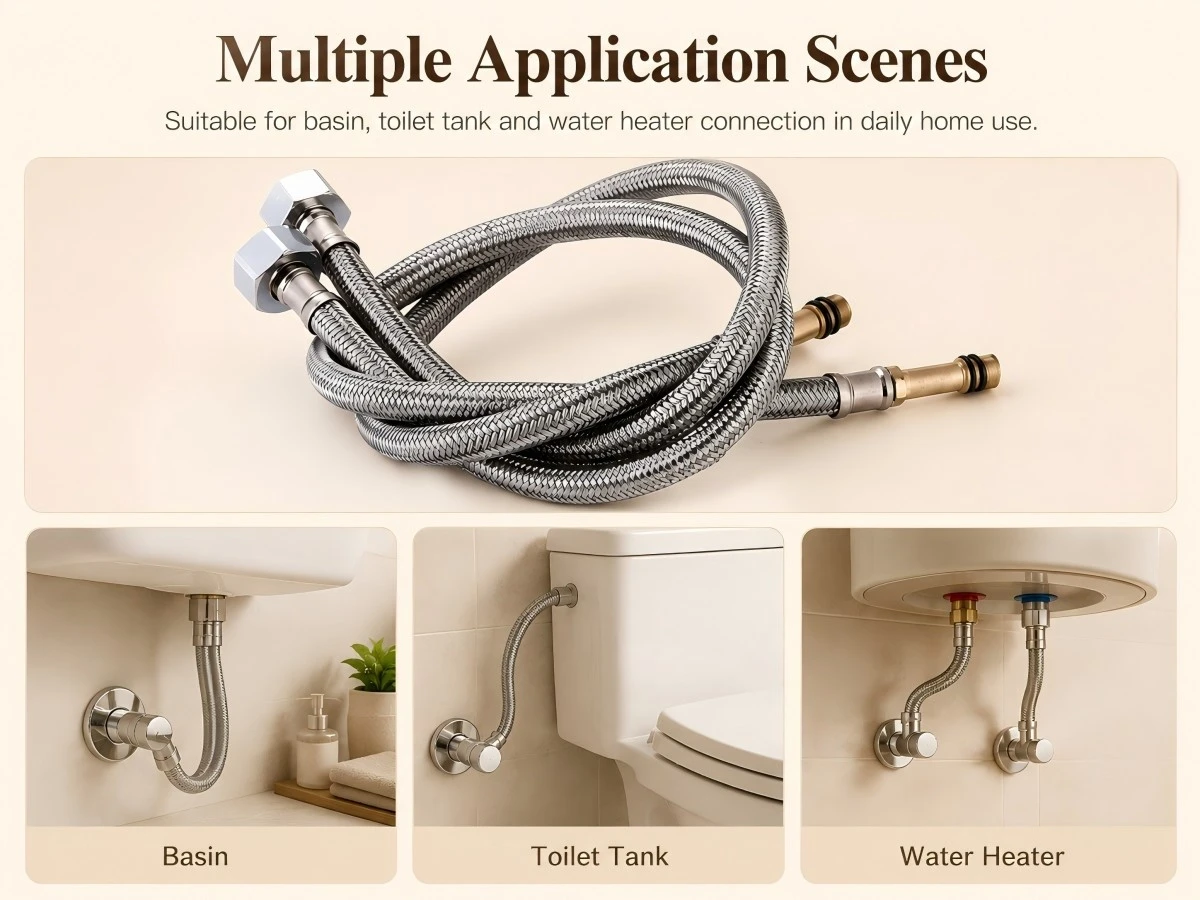

Basin and Kitchen Faucets |
Advantages

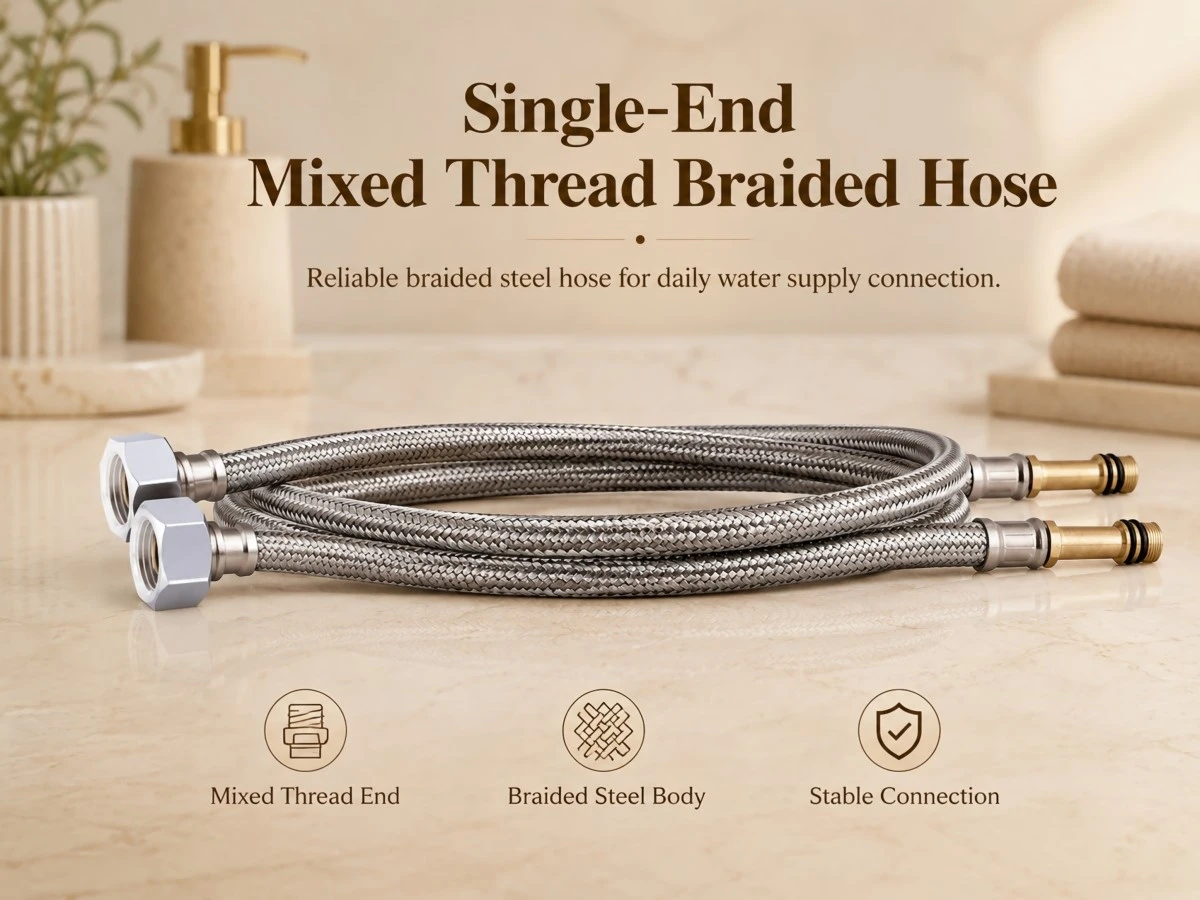

Mixed Protective Braid
Stainless steel wire and black nylon create a flexible woven exterior around the EPDM water tube.

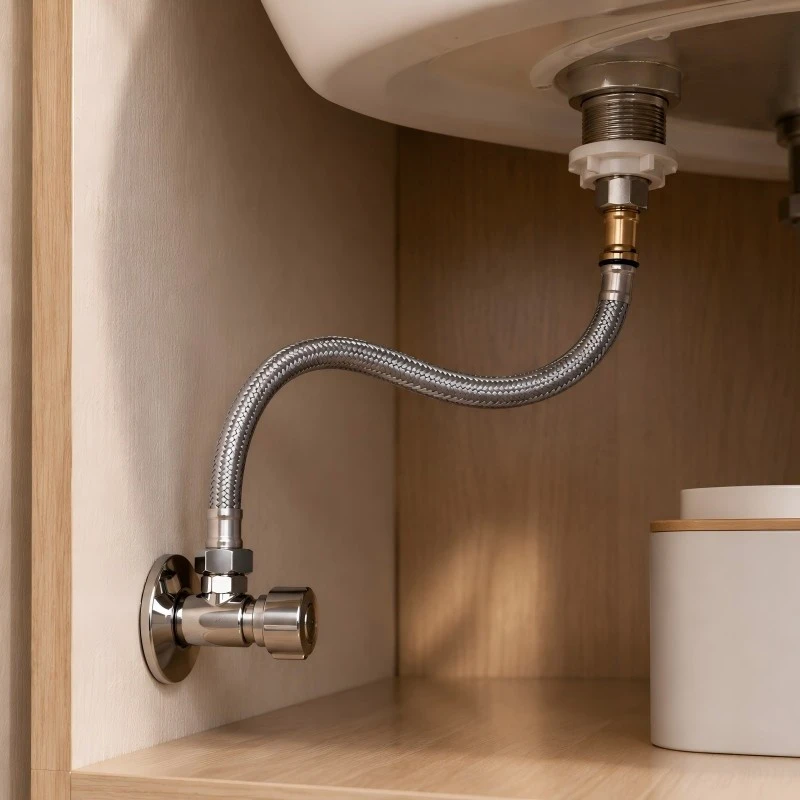

Faucet-Specific End Layout
An M10 male rod pairs with a G1/2 female nut for compatible basin and kitchen mixer connections.
Hot and Cold Application
The EPDM inner tube and 0-80 °C range support hot- or cold-water faucet supply lines.
Broad Length Selection
Options from 40 cm to 200 cm let buyers match different cabinet depths and supply-point positions.
FAQ
Q: Which end connects to the faucet?
A: The M10 brass male end with its O-ring is the faucet-side connection.
Q: What fitting is used on the supply side?
A: The opposite end is a G1/2 female hex nut.
Q: What pressure range should be followed?
A: Working pressure is 1.0-1.2 MPa, with a burst pressure of at least 3.0 MPa.
Q: What temperatures can the hose handle?
A: The applicable water-temperature range is 0-80 °C.
Q: How do I select a length?
A: Measure the relaxed route and choose a standard option between 40 cm and 200 cm.
