Product Details

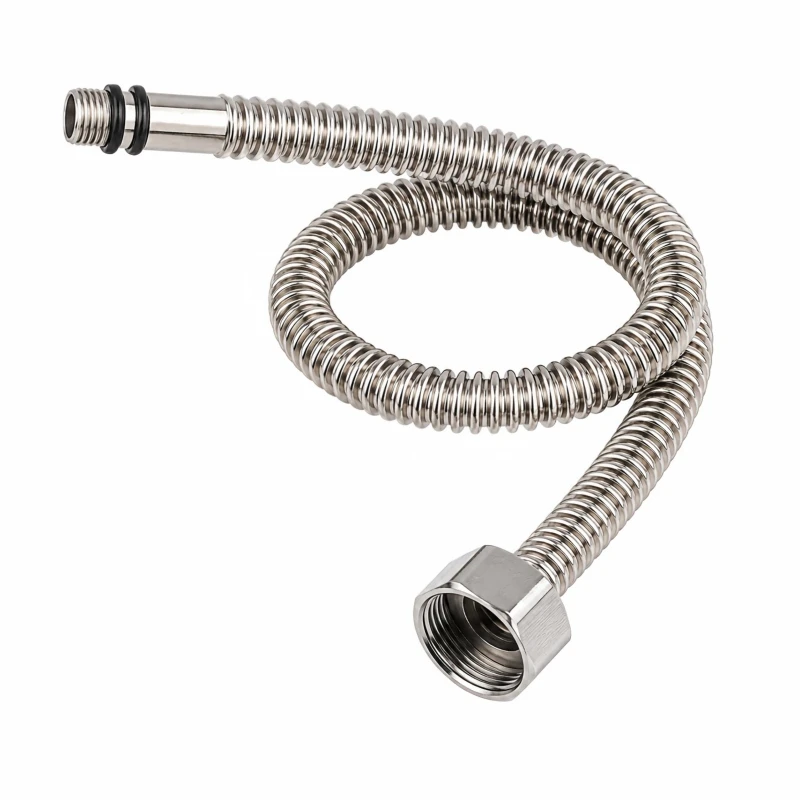

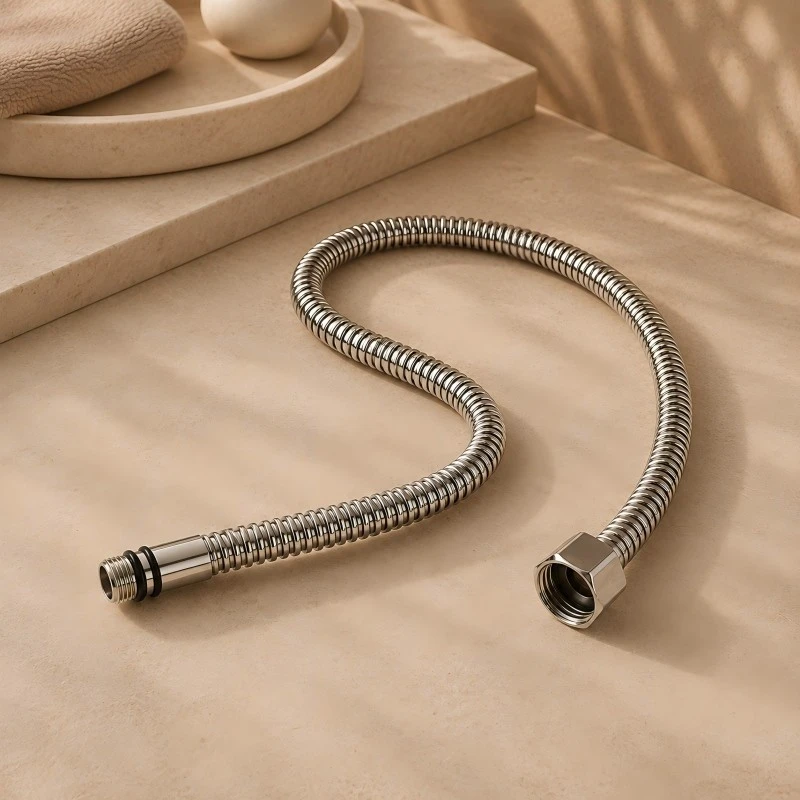

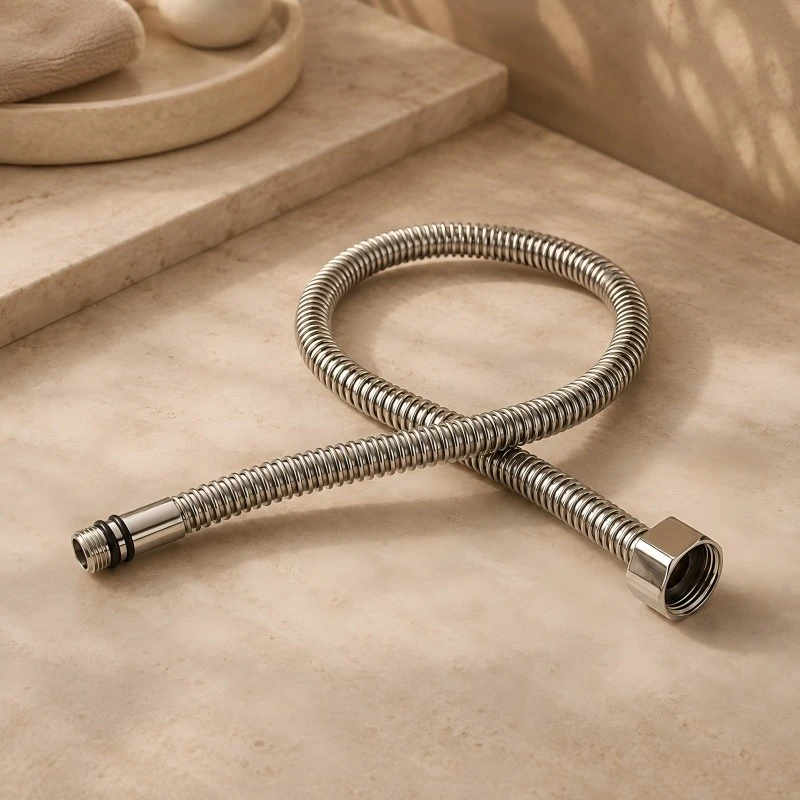

The faucet end is an M10 brass male rod with a sealing ring, while the supply side uses a G1/2 female connector with a hexagonal nut. This arrangement matches common unequal-end faucet supply layouts. The metal tube should be shaped in a broad curve rather than folded sharply during installation.

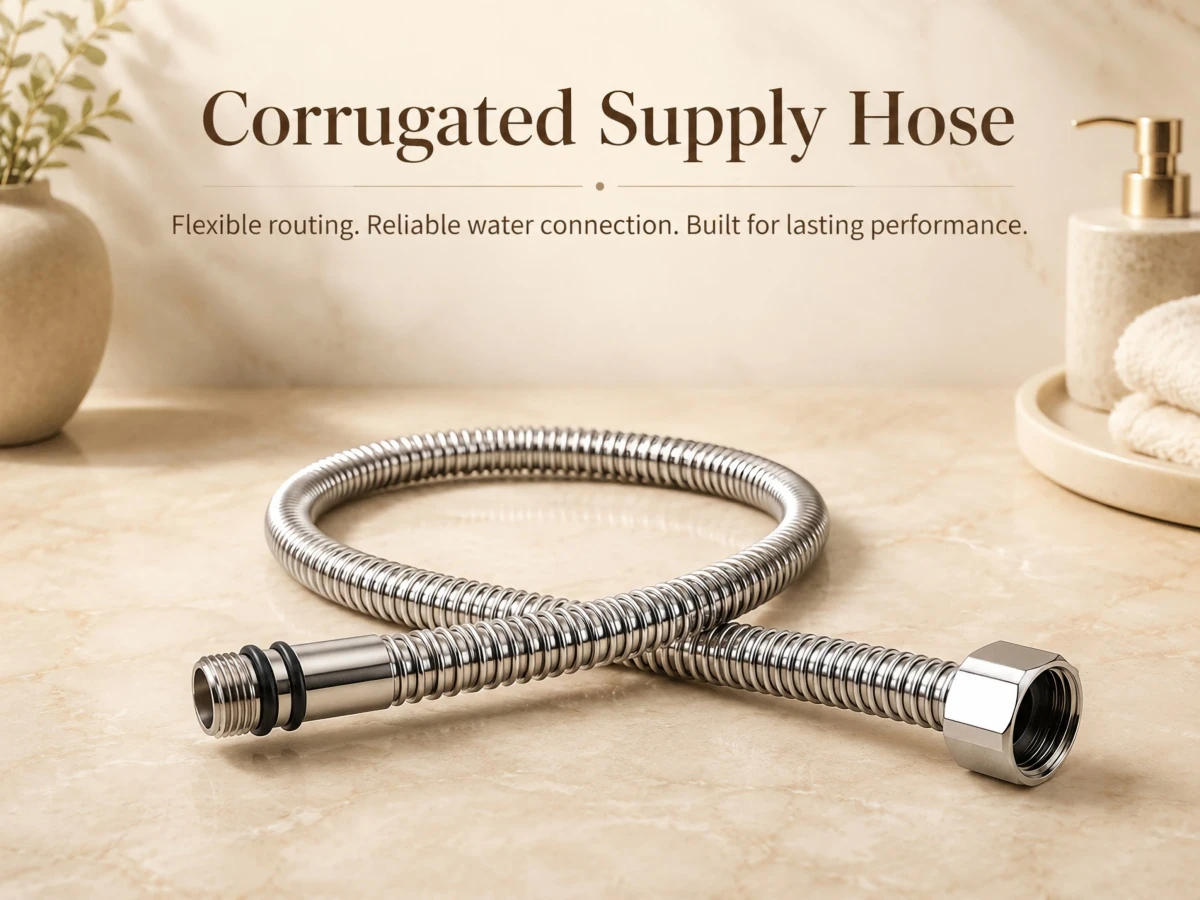

Unlike a braided hose built around an EPDM liner, this product uses a single corrugated stainless steel water path. The wave pattern provides the movement needed for routing below the basin. Its all-metal tube is easy to distinguish when buyers need a connector without a rubber inner layer.
Working pressure is 1.0-1.6 MPa, and the hose has a minimum burst rating of 4.0 MPa. The temperature range is 0-120 °C. Length options are 40, 50, 60, 80, 100 and 120 cm. Select a size that reaches both fittings without stretching the corrugations straight.
Product Specifications
|
Product Type: |
Corrugated Faucet Hose |
|
Tube Material: |
304 Stainless Steel |
|
Inner Structure: |
No Rubber Inner Tube |
|
Faucet End: |
M10 Brass Male with Seal |
|
Supply End: |
G1/2 Female Hex Nut |
|
Working Pressure: |
1.0-1.6 MPa |
|
Burst Pressure: |
>=4.0 MPa |
|
Applicable Temperature: |
0-120 °C |
|
Length Options: |
40/50/60/80/100/120 cm |
|
Application: |
Basin and Kitchen Faucets |
Advantages
One-Piece Metal Water Path
The corrugated 304 stainless steel tube carries water without a separate rubber inner hose.

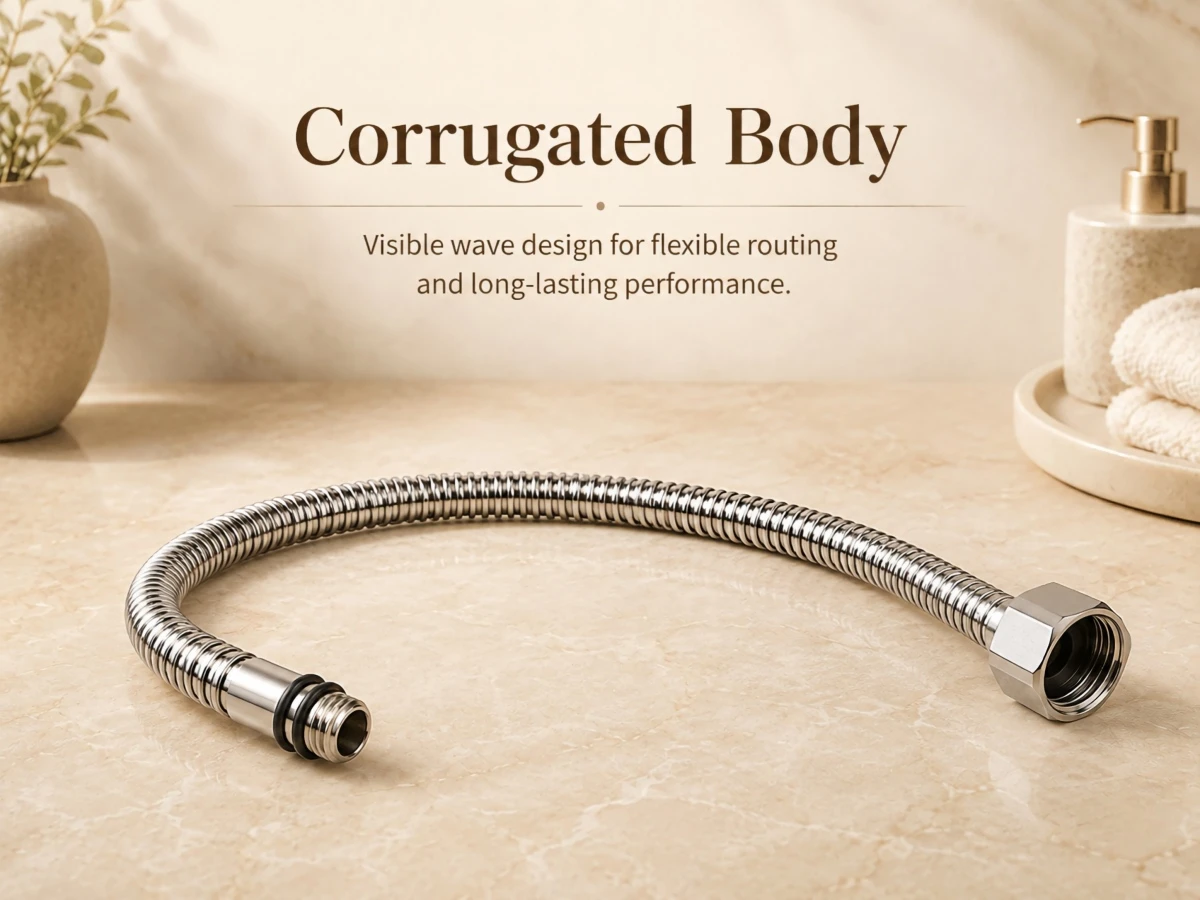

Shapeable Wave Structure
Broad corrugations allow the connector to curve between the faucet body and the supply fitting.
Higher Temperature Range
The 0-120 °C range suits hot- and cold-water faucet connection requirements.
Multiple Connection Lengths
Six standard options help match different distances inside basin and kitchen cabinets.
FAQ
Q: What are the two connection types?
A: The faucet side is M10 male, while the supply end uses a G1/2 female connector.
Q: What operating pressure applies?
A: Working pressure is 1.0-1.6 MPa, with burst pressure of at least 4.0 MPa.

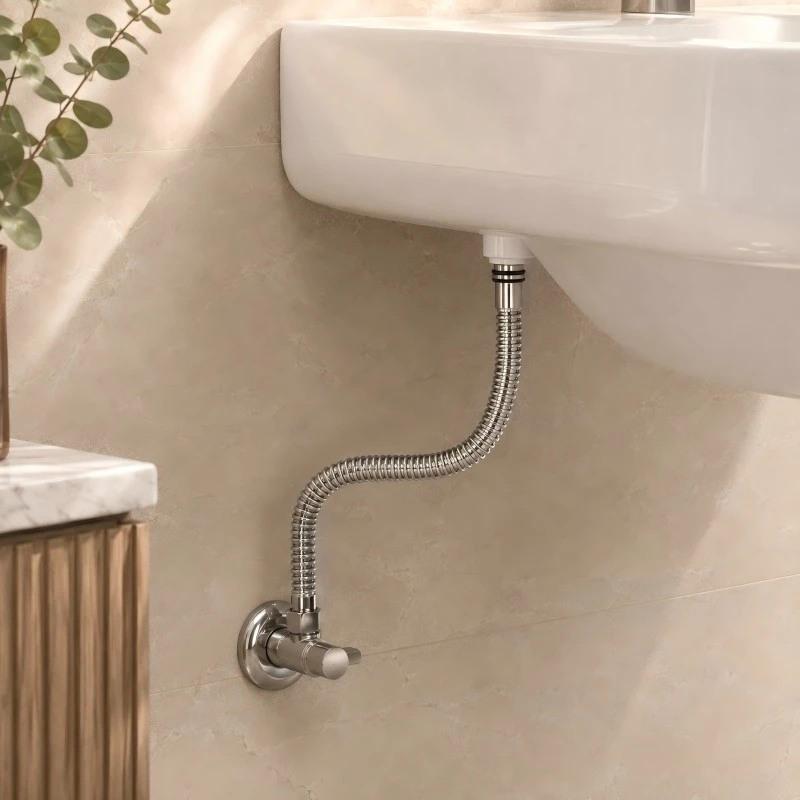

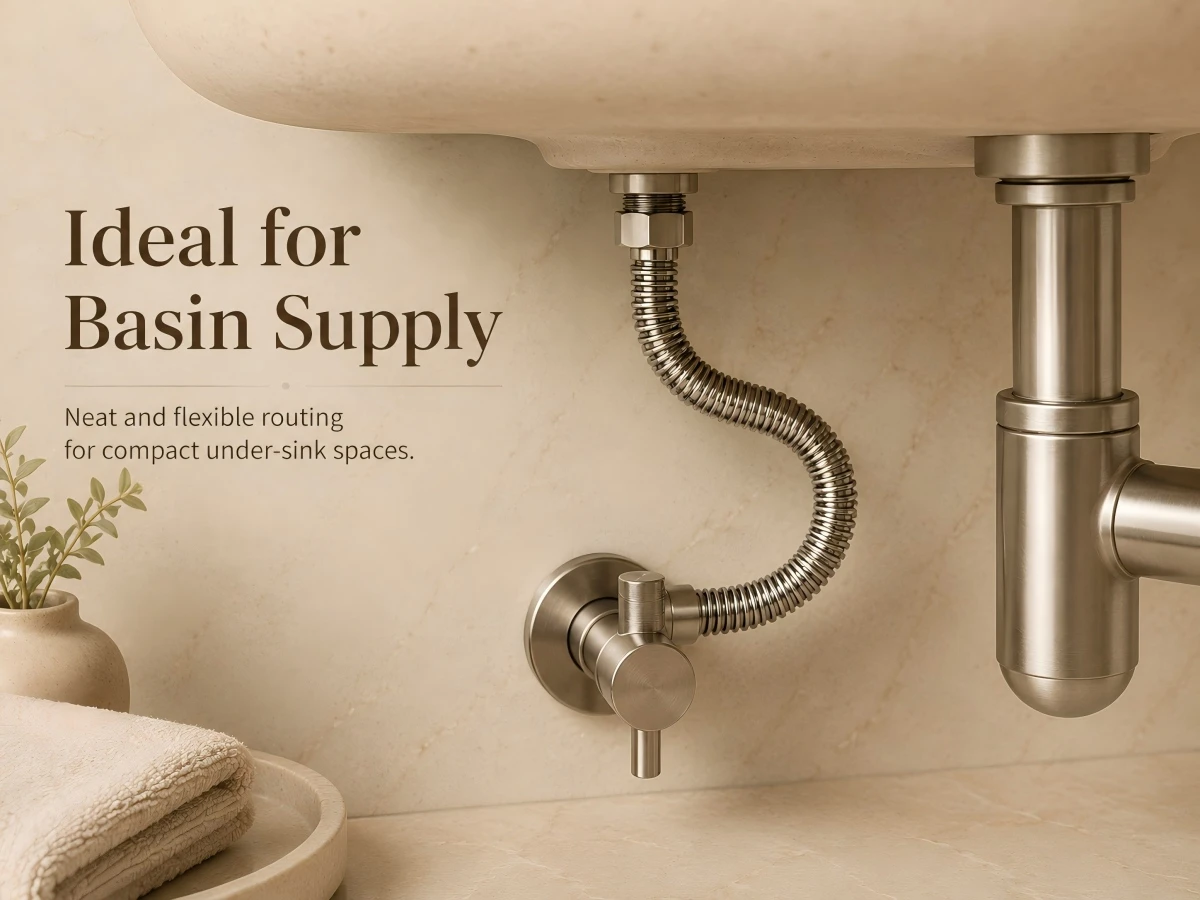

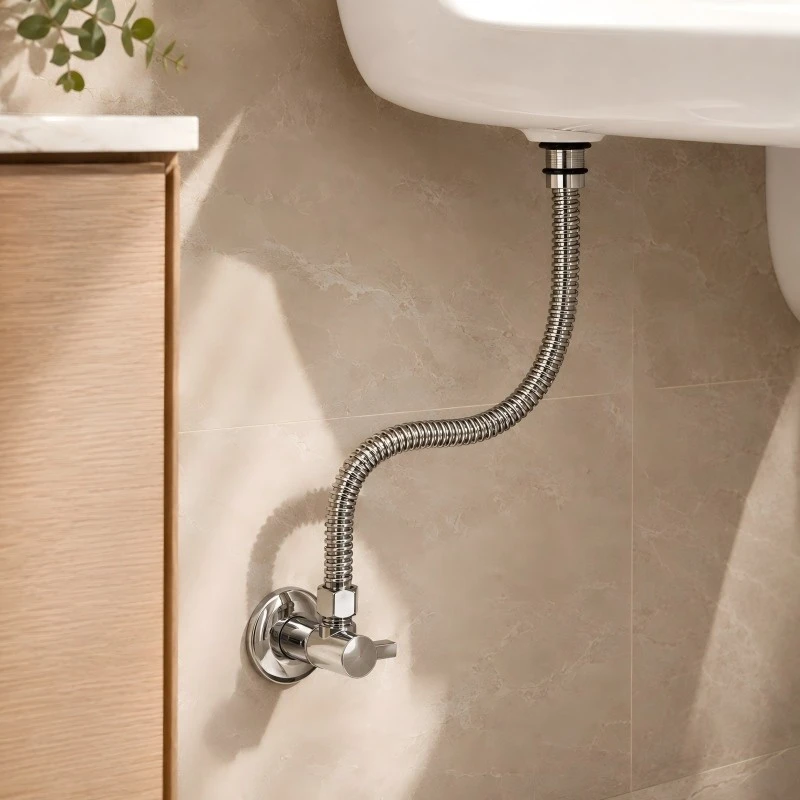

Q: How should the metal hose be routed?
A: Form a broad curve between the fittings and avoid folding the corrugated tube sharply.
