Product Details

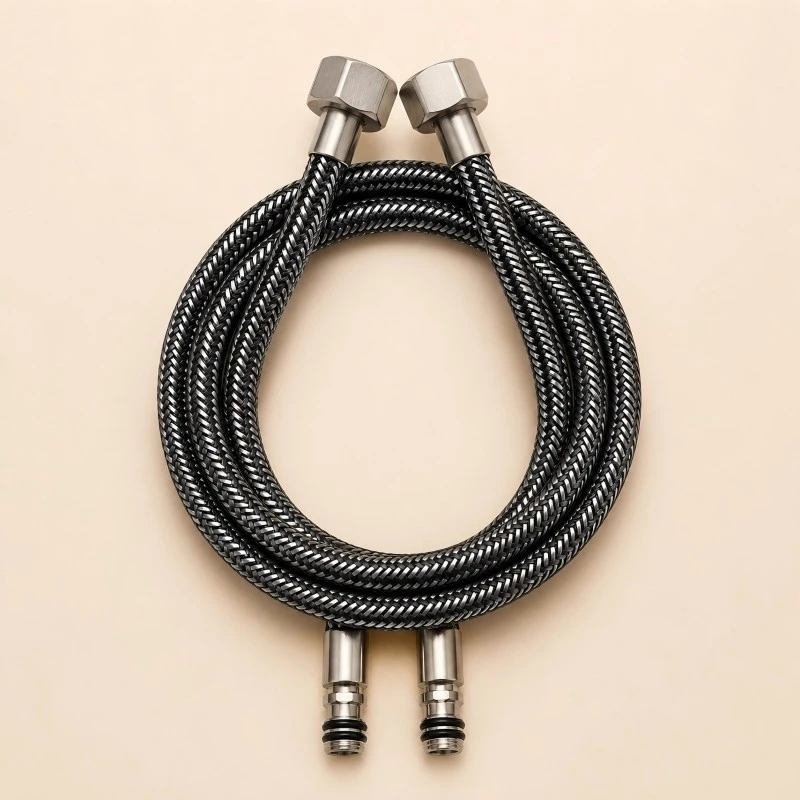

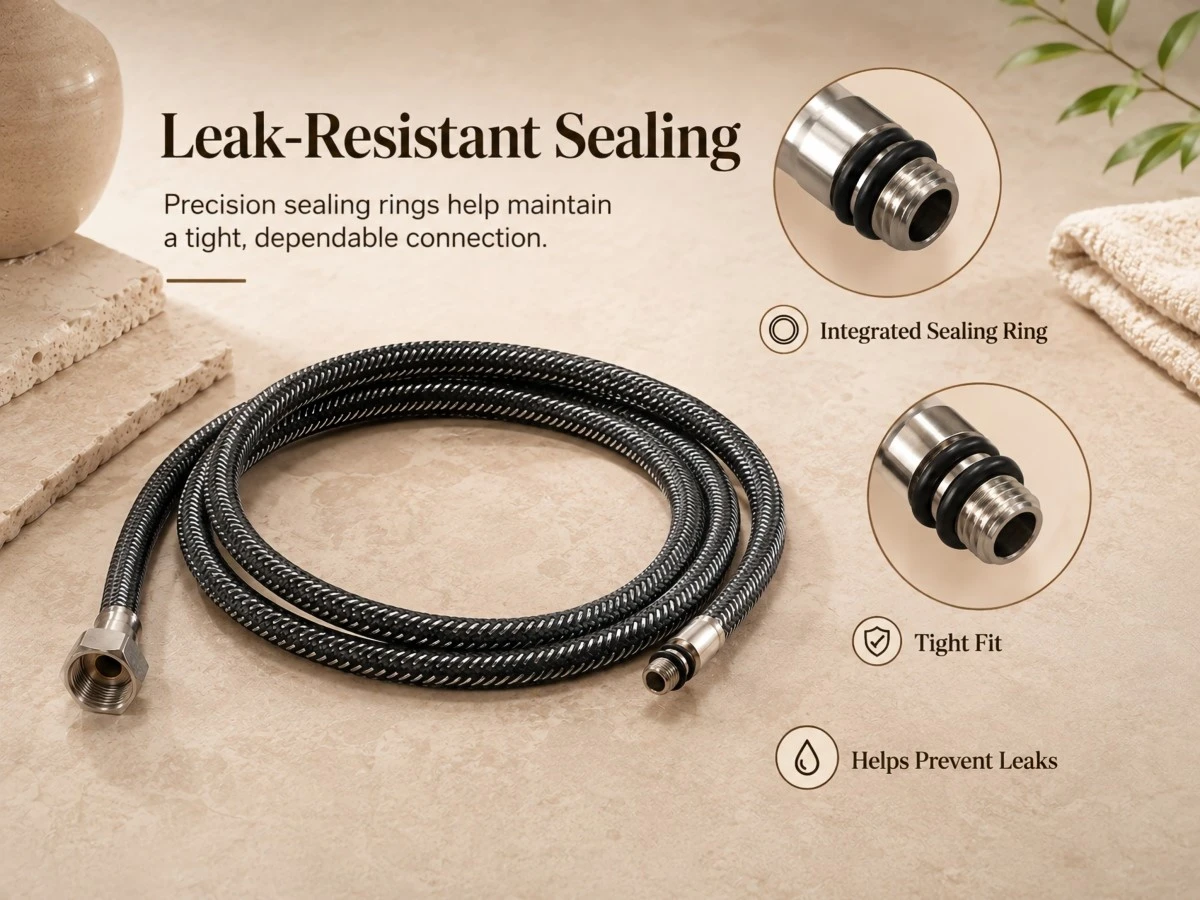

The faucet side uses an M10 brass male connector with a sealing ring. A G1/2 female hex nut forms the connection at the supply end. Iron or copper caps are used around the joints, and the pointed connector section is brass.

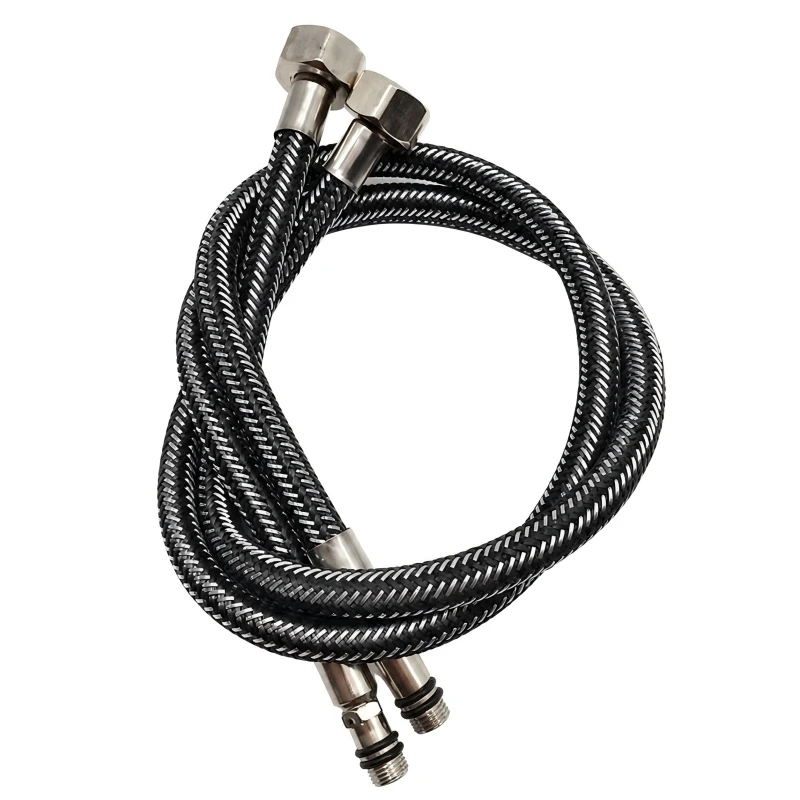

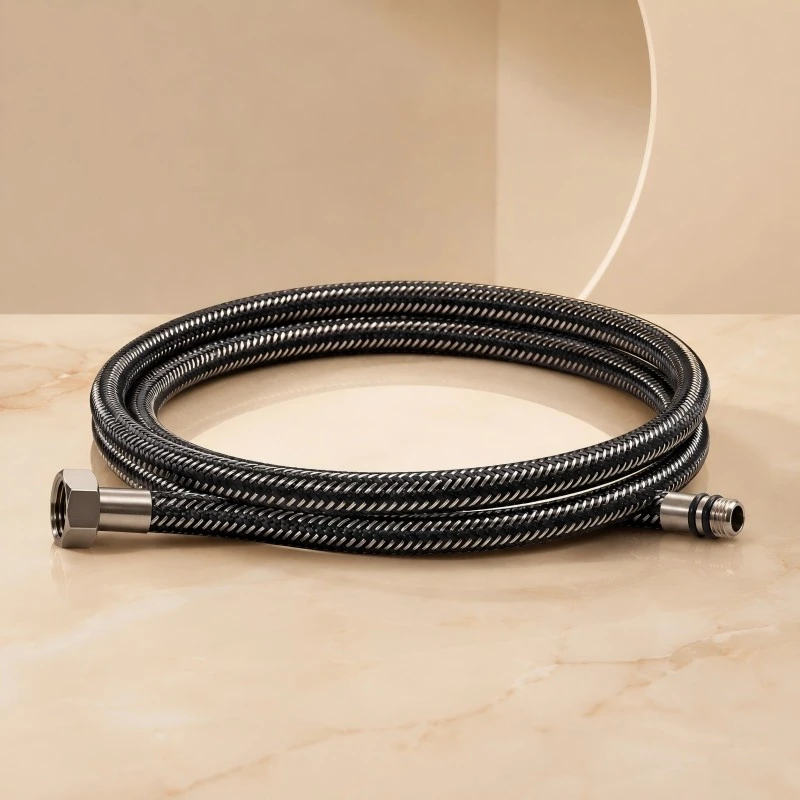

Black nylon is woven with aluminum wire around the EPDM inner tube. This creates a flexible hose body that can curve between the mixer and the supply valve. The dark exterior also makes this version easy to distinguish from a plain stainless-steel braided connector during installation.
The working-pressure range is 0.8-1.0 MPa, with a minimum burst rating of 2.5 MPa. The applicable temperature is 0-80 °C. Length choices are 40, 50, 60, 80, 100 and 120 cm. Measure the connection route before selecting a size.
Product Specifications
|
Product Type: |
Hot and Cold Faucet Hose |
|
Outer Braid: |
Aluminum Wire and Black Nylon |
|
Inner Tube: |
EPDM |
|
Faucet End: |
M10 Brass Male with Seal |
|
Supply End: |
G1/2 Female Hex Nut |
|
Working Pressure: |
0.8-1.0 MPa |
|
Burst Pressure: |
>=2.5 MPa |
|
Applicable Temperature: |
0-80 °C |
|
Length Options: |
40/50/60/80/100/120 cm |
|
Application: |
Basin and Kitchen Faucets |
Advantages
Distinct Black Braided Finish
The aluminum-and-nylon weave gives the faucet hose a dark surface that is easy to identify below the basin.
Flexible EPDM Water Line
An EPDM inner tube follows the routing path while carrying hot or cold water to the mixer.
Two Different Connector Ends
M10 male and G1/2 female fittings match the unequal connection layout used by compatible faucets.
Six Standard Lengths
The offered size range covers short cabinet runs as well as longer routes to the supply point.
FAQ
Q: Which connector goes into the faucet body?
A: Use the M10 brass male end with its seal at the compatible faucet connection.
Q: What pressure applies during normal use?
A: The working range is 0.8-1.0 MPa, and the minimum burst rating is 2.5 MPa.
Q: Is the outside braid stainless steel?
A: No. This version uses aluminum wire combined with black nylon.
Q: Which hose lengths can be selected?
A: The standard choices are 40, 50, 60, 80, 100 and 120 cm.
Q: Where is this hose intended to be used?
A: It is intended for compatible hot- and cold-water basin or kitchen faucets.
